Revell 00017 M-48 & Scissors Bridge

Revell Classics limited Edition of 5000 pieces

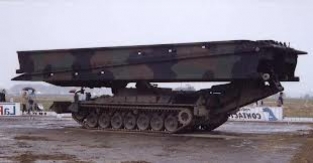

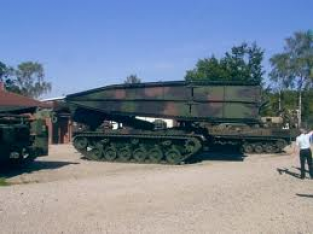

For many decades the M48 bridge-laying tank was the standard bridge-layer of theUS Army engineers and was also used by many NATO partners. The first troop trials (M46) with a shorter bridge began in 1958. Later it was decided to use the chassis of the M48 with a 20 m long scissors bridge. This combination proved extremely successful, not least due to its great ease of operation and low-maintenance bridge hydraulics. The fuel consumption of the vehicle was nothing short of phenomenal, with a cross-country petrol consumption of 500-700 litres per 100 km. The scissors bridge which was just 20 m long was laid and retracted by 4 hydraulic cylinders. One after the other the raising, laying and folding cylinders were activated. After the bridge was laid the two hydraulic connections were automatically separated by reverse motion. In the US Army 2 were allocated to each tank battalion.


Eén uitvoering mogelijk;

• U.S.Army "vietnam".

Schaal 1:40
Aantal onderdelen; 252.
Afmeting:

• Lengte.552 mm.

Model-details:

• Historical Revel model kit
• Detailed hull
• Movable track rollers
• One-piece track
• Turret with 2 MGs
• Steel springs for folding function
• Movable parts for raising and laying function
• Detailed scissors bridge with sway bracing
• The bridge can be shown at 3 different operating stages: folded
• half raised andcompletely extended

Revell verf:  35 46 65 77 90
