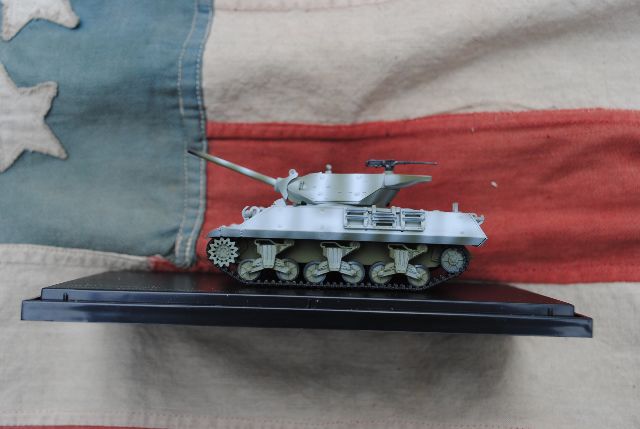

Hobby Master HG3406 M10 773th Tank Destroyer Battlion "Ardennes 1945"

Artikelnr: Hobby Master HG3406
19,95

Uitverkocht

  • Ophalen bij een afhaalpunt mogelijk
  • Voor 15.00 uur besteld dezelfde dag verzonden
Beschrijving

M10 773th Tank Destroyer Battlion "Ardennes 1945"

Fully Assembled - Authentic Scale - Die-Cast and Plastic Parts

General Background

The M-10 was America's first tank destroyer built on a Sherman hull with a 76mm 50 caliber cannon. The cannon was so heavy a counter-weight had to be mounted on the rear of the turret. It had light angular armor and counted on speed and agility for survival. Extra armor could be bolted to the turret and hull. The turret had an open-top exposing the crew to enemy fire and the elements. The M-36 with its 90mm cannon eventually replaced the M-10.

Specifications :

Crew:

5 (commander, gunner, loader, driver, co-driver)

Combat weight:

32.6 tons (29,574.22 kg)

Power-to-weight ratio:

12.6 hpfT

Overall length:

22.3 ft. (6.83 m)

Width:

10ft. (3.05 m)

Height:

9.5 ft. (2.90 m)

Ground clearance:

17 inches (43.18 cm)

Engine:

Two General Motors 6046 12 cylinder, 2 cycle diesel with 850 cubic inch displacement; 410hp

Transmission:

Syncro-mesh transmission with 5 forward, one reverse gear

Fuel capacity:

165 gallons (624.59 l)

Maximum speed (road):

30mph (48.2 km/h)

Maximum speed (cross-country):

20mph (32.18 km/h)

Maximum range:

200 miles (322 km)

Fuel consumption:

1.2 miles per gallon (0.5 km/l)

Armament:

1.2 miles per gallon (0.5 km/l)

M62 APC projectile:

muzzle velocity 2,600 ft/sec –Penetration of 93mm at 500 yards at 30 degrees

M93 HVAP projectile:

muzzle velocity 3,400 ft/sec –Penetration of 93mm at 500 yards at 30 degrees

Maximum effective range:

16,100 yards (14,721 m)

Gun depression/elevation:

-10 to +30 degrees 1 X .50 cal. M2 HB machine gun 1,000 rounds

Armor:

2.24 in (57mm) gun mantlet



0.98 in (25mm) turret sides



1.5 in (38mm) upper hull front



1.97 in (50mm) lower hull front



0.75 in (19mm) upper hull side


Eén uitvoering mogelijk;

  • M-10 - 773rd Tank Destroyer Battlion, Belgium, Januari 1945.

Schaal 1:72
