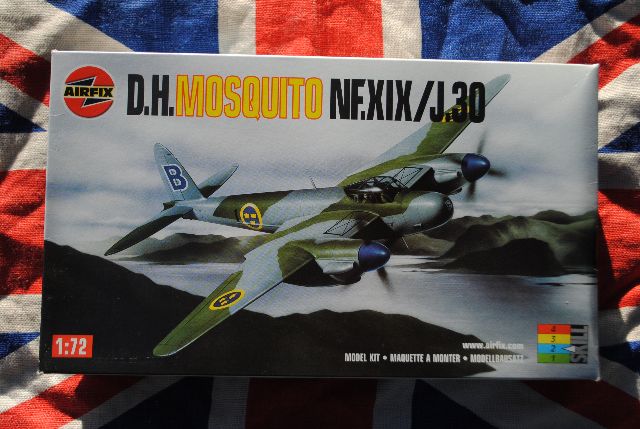

H.D. Mosquito NF.XIX / J.30

At the end of 1940, the Air Staff's preferred night fighter design was the Gloster F.18/40 (derived from their F.9/37). However, although in agreement as to the quality of the Gloster company's design, the Ministry of Aircraft Production was concerned that Gloster would not be able to work on the F.18/40 and also the jet fighter design, considered the greater priority. Consequently in mid-1941 the Air Staff and MAP agreed that the Gloster aircraft would be dropped and the Mosquito considered for the night fighter requirement instead.

The first production night fighter Mosquitos were designated NF Mk II. A total of 466 were built with the first entering service with No. 157 Squadron in January 1942, replacing the Douglas Havoc. These aircraft were similar to the F Mk II, but were fitted with the AI Mk IV metric wavelength radar. The herring-bone transmitting antenna was mounted on the nose and the dipole receiving antennae were carried under the outer wings.[120] A number of NF IIs had their radar equipment removed and additional fuel tanks installed in the bay behind the cannon for use as night intruders. These aircraft, designated NF II (Special) were first used by 23 Squadron in operations over Europe in 1942. 23 Squadron was then deployed to Malta on 20 December 1942, and operated against targets in Italy.

Ninety-seven NF Mk IIs were upgraded with centimetric AI Mk VIII radar and these were designated NF Mk XII. The NF Mk XIII, of which 270 were built, was the production equivalent of the Mk XII conversions. The centimetric radar sets were mounted in a solid "thimble" (Mk XII / XIII) or universal "bull nose" (Mk XVII / XIX) radome, which required the machine guns to be dispensed with.

NF Mk XIII of 256 Squadron, with the "bull nose", caught in the beam of a Chance light on the main runway at Foggia, Italy, before taking off on a night intruder sortie.
Four F Mk XVs were converted to the NF Mk XV. These were fitted with AI Mk VIII in a "thimble" radome, and the .303 Brownings were moved into a gun pack fitted under the forward fuselage.

NF Mk XVII was the designation for 99 NF Mk II conversions, with single-stage Merlin 21, 22, or 23 engines, but British AI.X (US SCR-720) radar.

The NF Mk XIX was an improved version of the NF XIII. It could be fitted with American or British AI radars; 220 were built.

The NF Mk 30 was the final wartime variant and was a high-altitude version, powered by two 1,710 hp (1,280 kW) Rolls-Royce Merlin 76s. The NF Mk 30 had a maximum speed of 424 mph (682 km/h) at 26,500 ft (8,100 m).[124] It also carried early electronic countermeasures equipment. 526 were built.

Twee uitvoeringen mogelijk;

• Mosquito J.30, No.2 Squadron, F1 Wing, Swedish Air Force, 1949.

• Mosquito NF.XIX, No.157 (special duties) Squadron., No.100 Group RAF, UK, 1944.

Aantal onderdelen; 97.
Afmeting:

• Lang; 171 mm.
• Breed; 228 mm.

Humbrol verf: 14 / 27 / 30 / 56 / 61 / 69 / 78 / 86 / 96 / 98 / 113.

Schaal 1:72

Airfix A03062
